Front-Mounted Ultrasonic Parking Guidance Solution

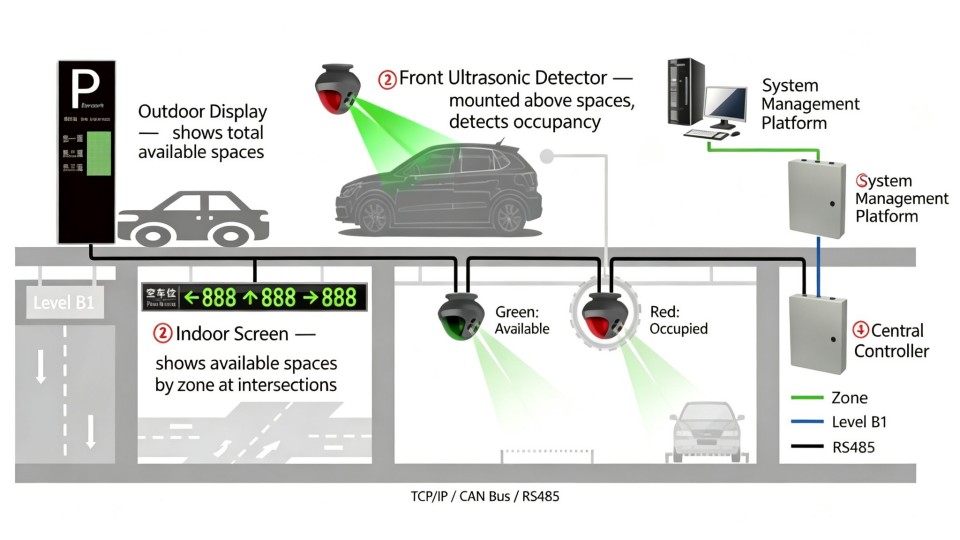

Front-mounted ultrasonic space detectors are installed directly above the line at the front of each parking space. The detector and indicator are integrated.

When a vehicle occupies a space, the integrated indicator changes from green to red. Indoor area controllers poll the detectors,

compress and encode the data according to defined rules, and return it to the indoor central controller. The central controller processes the data and sends available-space information to each guidance display.‍

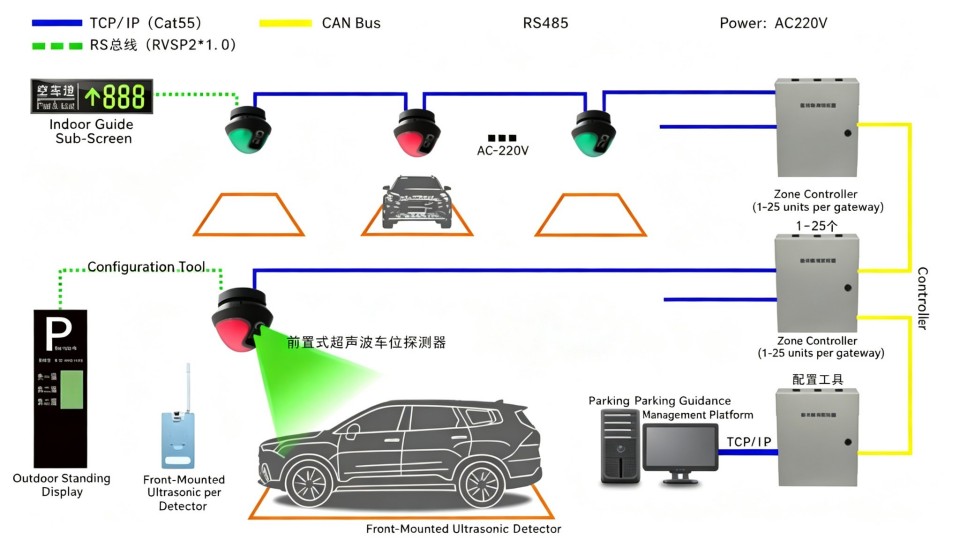

System Topology Diagram

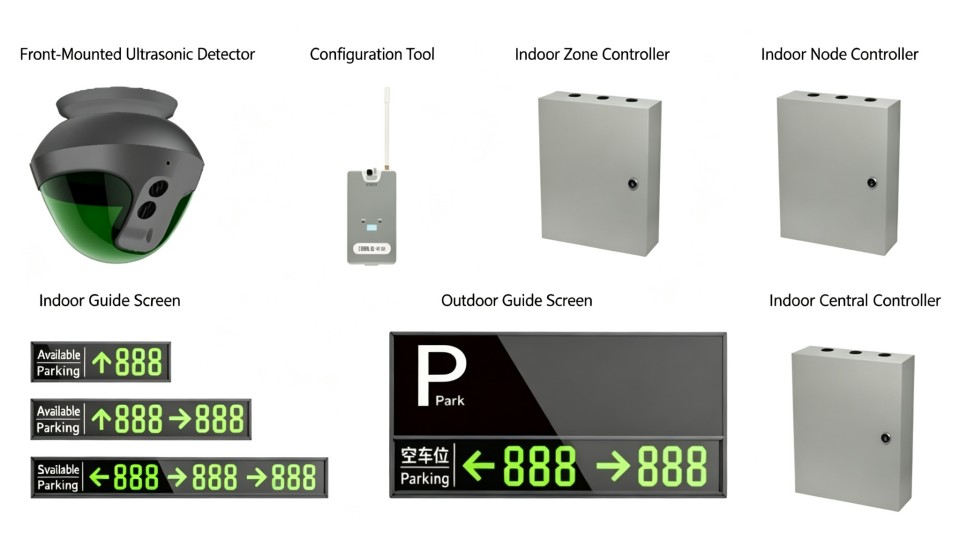

System Hardware Devices

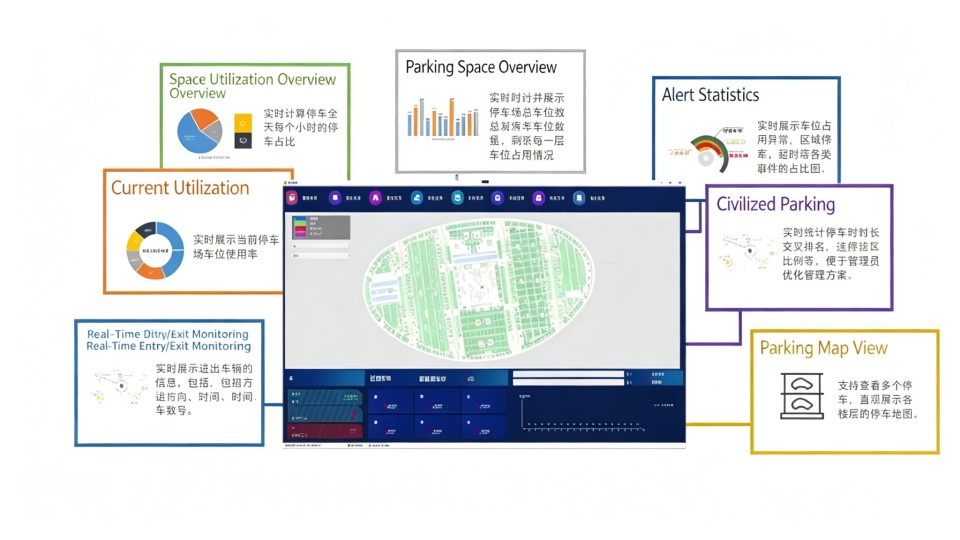

System Software Platform

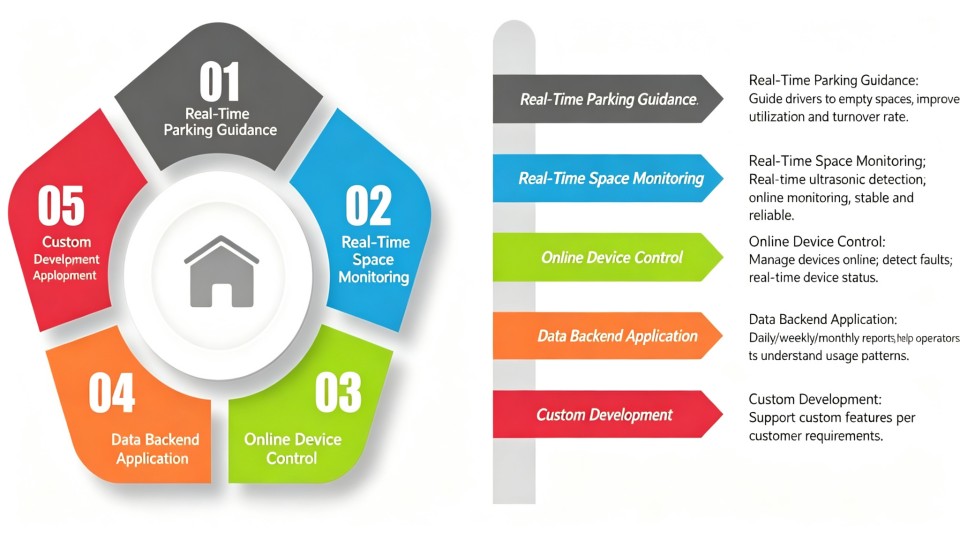

System Advantages

This system improves the intelligence and digitalisation of the entire car park by transferring tasks that previously

required manual processing to intelligent equipment. It significantly reduces labour costs while ensuring that data is timely,

 accurate and effective. Drivers can quickly and easily find available spaces through various guidance devices, saving time,

 enhancing the overall image of the car park and providing a premium parking experience.

Advantages Comparison

Compared with the split-type ultrasonic parking guidance system, the front-mounted ultrasonic parking space detector integrates

the detector and indicator into one unit. A single network cable provides both communication and power,

reducing construction costs by 45%. The front-mounted detector is also easier to install, shortening the construction period by 32%.

Guidance displays can be installed at the most suitable locations to help drivers find parking spaces quickly.
