Split-Type Ultrasonic Parking Guidance Solution

System overview

Split-type ultrasonic space detectors are installed above each parking space to collect space status in real time. When a vehicle occupies a space,

the indicator above the space changes from green to red. Indoor Ethernet area controllers poll the connected detectors, upload the data to the

server for processing and send the processed available-space data to the car park's guidance displays.

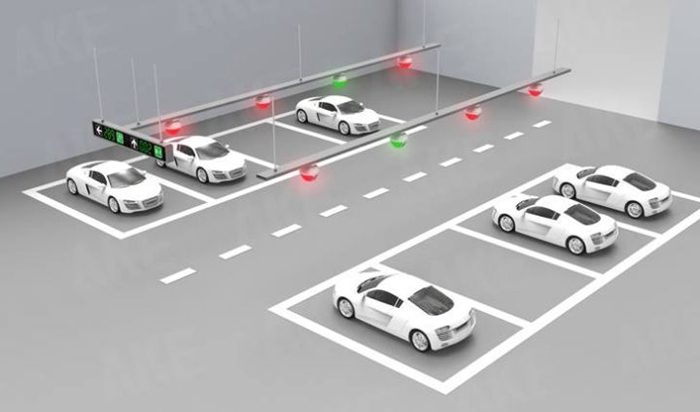

Site Example

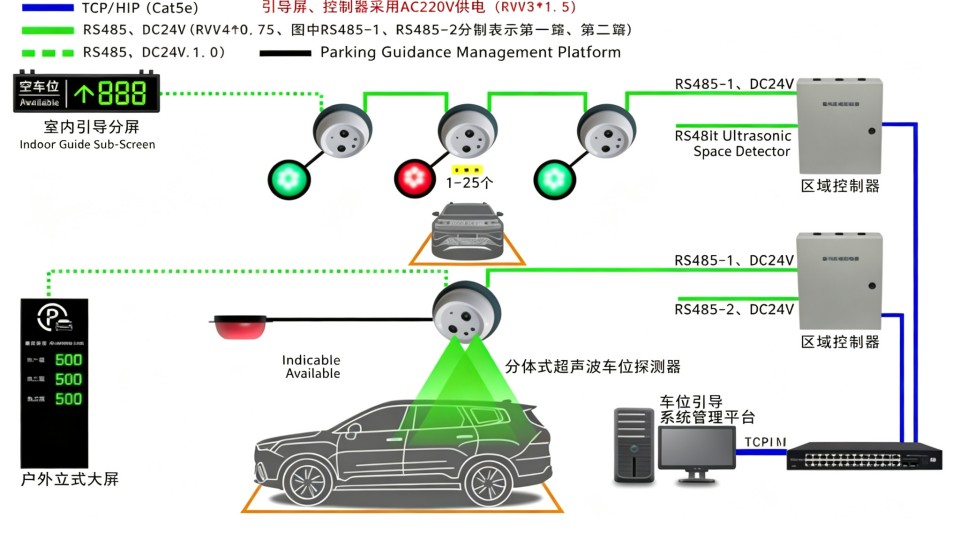

System Topology Diagram

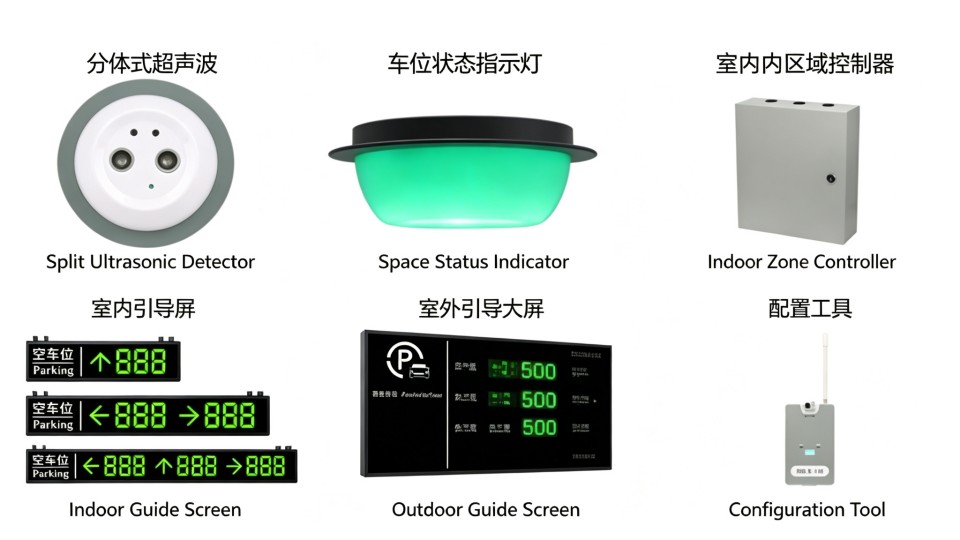

System Components

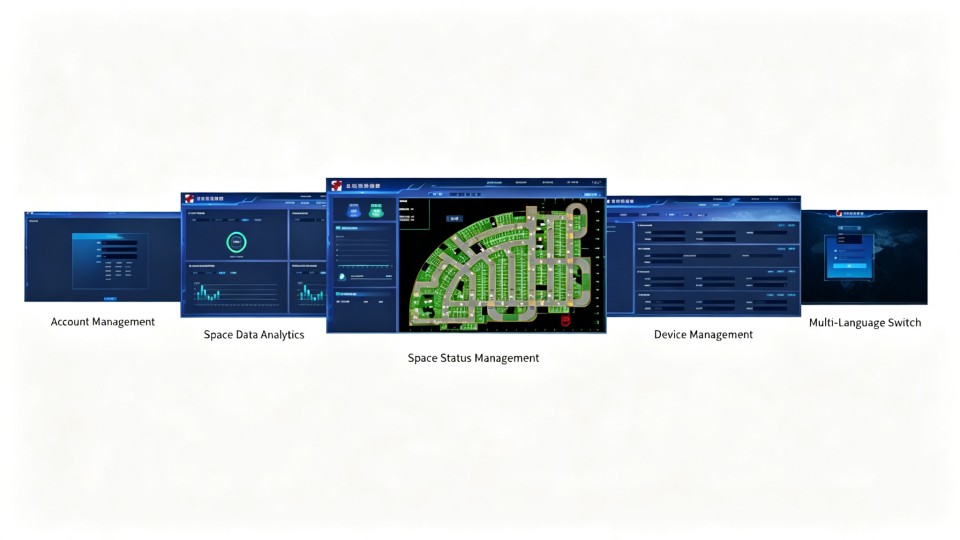

System Software Platform

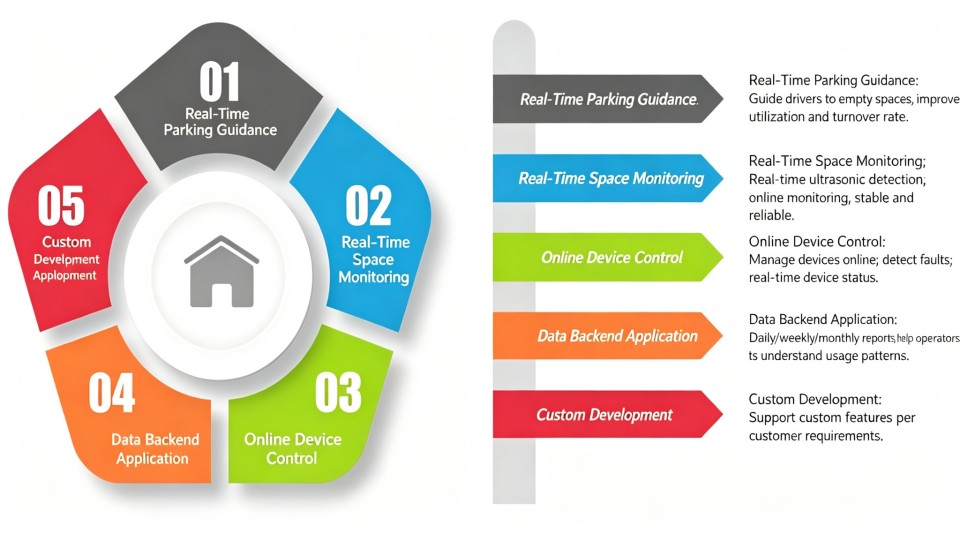

System Advantages

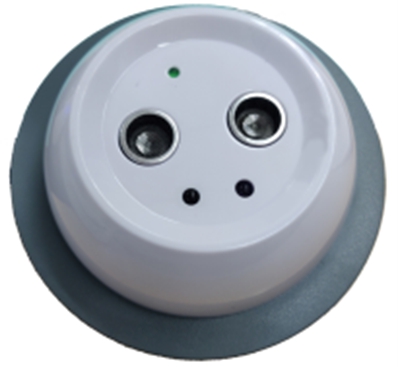

Split-Type Ultrasonic Parking Space Detector

The split-type ultrasonic parking space detector is a key component of the split-type ultrasonic parking guidance system.

It is installed directly above each parking space and uses ultrasonic ranging to collect real-time occupancy data.

The detector controls the parking indicator to display different space statuses and transmits status information to the area controller through the RS485 network.

Product Advantages

1. Ultra-wide detection-distance settings accommodate a variety of installation environments.

2. The receiving circuit uses multiple combined decision mechanisms to improve interference resistance and detection stability.

3. An advanced intelligent learning-based anti-interference algorithm eliminates interference from adjacent lanes, nearby vehicles and opposing sensors, achieving a detection accuracy of over 99%.

4. The unit undergoes rigorous testing for electrostatic discharge, lightning, surge and burst interference, ensuring reliable operation in harsh electrical environments.

5. Mobile-app commissioning, automatic address assignment and one-click parameter configuration improve commissioning efficiency.

6. Supports one-click server-side upgrades and updates, enabling rapid deployment of the latest extended features.

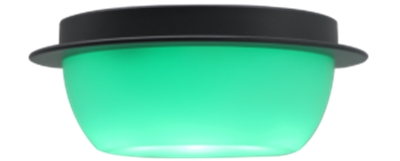

Split-Type Parking Space Indicator Light

The parking space indicator light is installed directly above the front of each parking space. It is controlled by the ultrasonic parking space detector and displays different colours according to the detector’s commands. The indicator shows green when the space is vacant and red when a vehicle is parked.

Product Advantages

1. Unique, clean and modern appearance.

2. High-brightness LED status indicators offer a long service life, long viewing distance and wide viewing angle.

3. Seven-colour LED display, with customizable colours for vacant spaces according to parking-facility requirements.

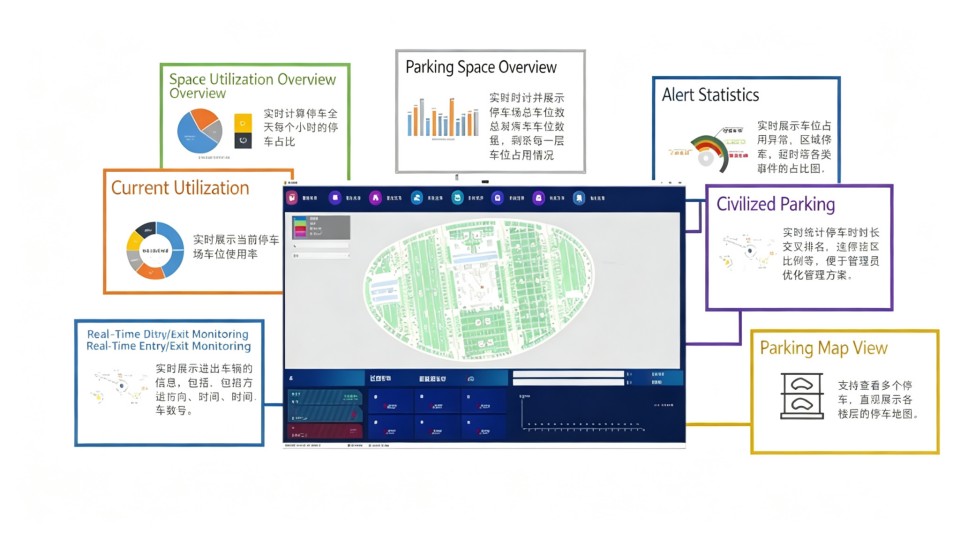

Management Platform

Functional Overview

1. Electronic map display: Shows the real-time distribution of parking spaces. Occupied spaces are shown in red, while vacant spaces are shown in green.

2. Time-based utilisation display: Uses curves to show the car park’s real-time utilisation over a 24-hour period.

3. Real-time space-status monitoring: When a vehicle enters a parking space, the software immediately displays the floor, time and space number.

4. Supports online device search and spreadsheet-based device import.

5. Supports multi-module management for devices, operations, maps and users.

6. Account and permission management: Assigns accounts with different permissions to different personnel according to project requirements. Permissions can be customized.

7. Data pushing: Supports direct data transmission to third-party platforms.

8. Log export: Exports logs according to customer requirements.
